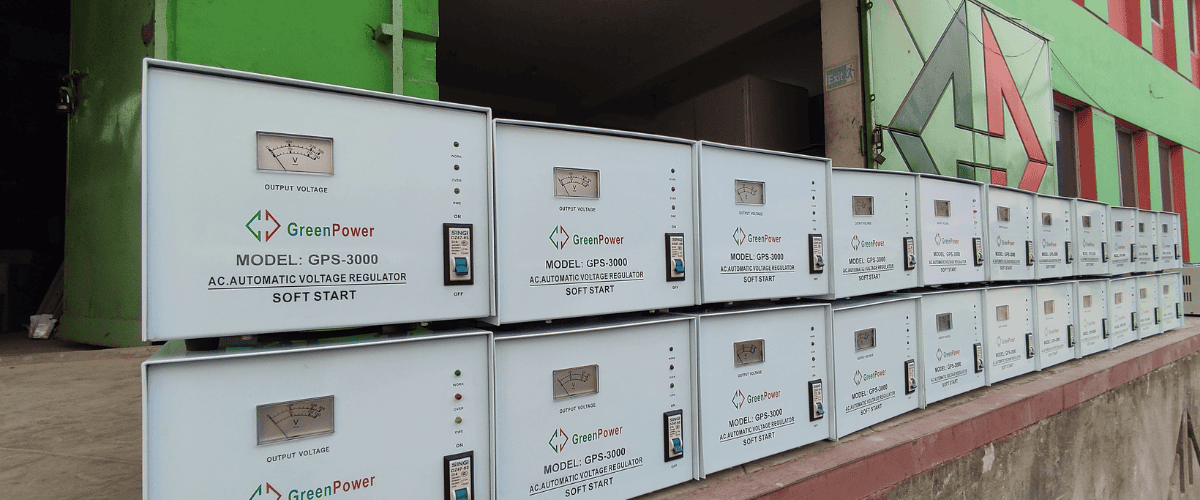

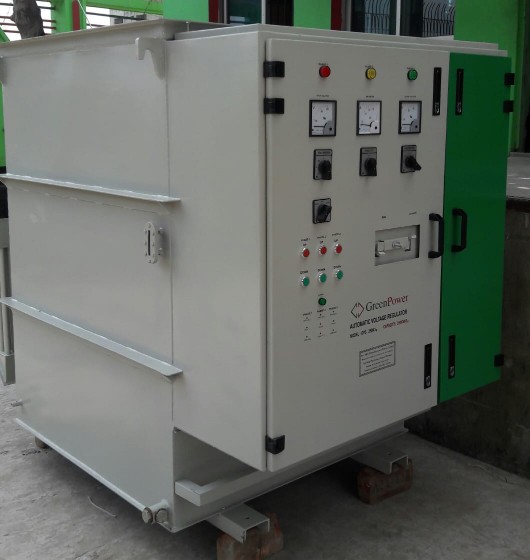

AUTOMATIC VOLTAGE REGULATOR (AVR)
Green Power Group offers high-performance Automatic Voltage Regulators (Oil Type & Dry Type) designed with servo-controlled systems and built-in protective circuits. These AVR units ensure smooth voltage regulation, fast response, and stable power output, protecting sensitive equipment and improving operational reliability across various industries.
Type:
Dry Type Automatic Voltage Regulator
Single Phase / Three Phase Options
Manual & Auto Regulating Models
Indoor / Outdoor Cabinet Options
Features:
Fully automatic with servo motor control
Overload and short circuit protection
Fast voltage correction and response time
High/low voltage and phase protection
Digital voltage and current display
Rust-proof cabinet with manual bypass (optional)
Technical Data / Specifications:
Capacity: 1–50KVA (1Ø), 3–2000KVA (3Ø)
Input Voltage: 100–280V / 210–460V
Output Voltage: 220–240V / 380–460V
Frequency: 50Hz
Correction Speed: 30–50V/sec
Accuracy: ±1% / ±3%
Cooling: Natural / Forced Air
Display: LED / LCD / Digit
Protection: Over/Under Voltage, Overload, Short Circuit, Phase Faults
Applications:
Elevators & Escalators
Cement & Ceramic Industries
Garments & Textile Machinery
Pharmaceuticals & Hospitals
Telecom and Data Centers
Injection Molding Equipment
