Step-Up Transformer

Green Power Group provides reliable and high-efficiency Step-Up Transformers designed to increase voltage levels for long-distance power transmission and renewable energy applications. Built with advanced technology and tested to meet international standards, our transformers ensure minimal power loss, maximum durability, and safe operation across diverse industries.

Type:

  • Oil-Immersed Step-Up Transformer

  • Dry-Type Step-Up Transformer

  • Single Phase / Three Phase

  • ONAN / ONAF Cooling Options

  • Indoor / Outdoor Applications

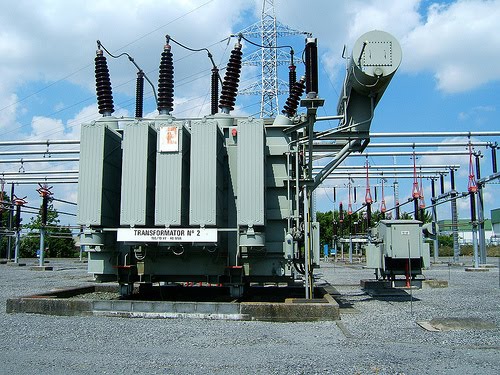

Step-Up Transformer
1-Step-Up Transformer

Features:

  • Capacity: 100 kVA to 50 MVA

  • Voltage Class: 11kV / 33kV / 132kV / 230kV

  • High-grade CRGO / Amorphous core

  • 99.9% Pure copper/aluminum windings

  • Low power loss, high efficiency

  • Robust tank with anti-corrosion protection

  • Overload handling capability

  • Low noise operation

  • Pressure relief device and oil level indicator

  • Custom design available on request

Specifications:

  • Frequency: 50Hz / 60Hz

  • Cooling System: ONAN / ONAF / OFWF

  • Insulation Class: Class F / H

  • Impedance: As per IEC/ANSI Standards

  • Vector Group: Dyn11, YNd1, or as required

  • Standards: IEC, ANSI, IEEE Compliant

  • Mounting Options: Outdoor / Indoor installation

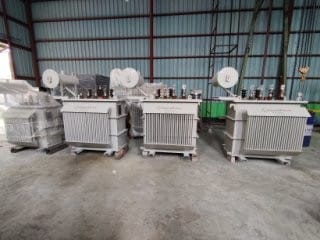

Step-Up Transformer2
