BUSBAR TRUNKING SYSTEM (BBT)
BUSBAR TRUNKING SYSTEM (BBT)
Green Power Group provides reliable Busbar Trunking Systems (BBT) for flexible and efficient power distribution in industrial, commercial, and residential buildings. Available in Sandwich (EX), Air Insulated (AX), and Lighting (LX) types, our BBT meets diverse needs with high safety and easy maintenance.
- Sandwich Type BBT (EX) – Compact for high-power industrial and commercial use
- Air Insulated Type BBT (AX) – Medium-power for building risers and service sectors
- Lighting Type BBT (LX) – For lighting and low-power applications
FEATURES
- Modular, easy install & expand
- Wide tap-off range (16A–1250A)
- High short-circuit resistance
- Low impedance, minimal voltage drop
- Aluminum/Copper conductors
Technical Specifications
Sandwich Type BBT (EX)
CONDUCTORS
Aluminum / Copper
CONFIGURATION
4P (3P+N), 5P (3P+N+PE)
TAP-OFF RATTINGS
25A–1250A
SUITABLE FOR
industries, banks, malls, hospitals
VOLTAGE DROP FOR
EXA AL and EXA CU
Air Insulated Type BBT (AX)
CONDUCTORS
Aluminum / Copper
CONFIGURATION
4P (3P+N), 5P (3P+N+PE)
TAP-OFF RATTINGS
16A–160A
CURRENT RATING
160A–800A (AL), 250A–1000A (CU)
SUITABLE FOR
industries, banks, malls, hospitals
VOLTAGE DROP FOR
AXA AL and AXA CU
Lighting Type BBT (LX)
CONDUCTORS
Copper (99.9% Pure)
CONFIGURATION
2 or 4 Conductors
SIZE
17x47 mm, Thickness: 0.9 mm
CURRENT RATING
25A, 40A, 63A
CASING
Painted / Anodized Aluminum
PROTECTION
IP55 – for ceilings and floors

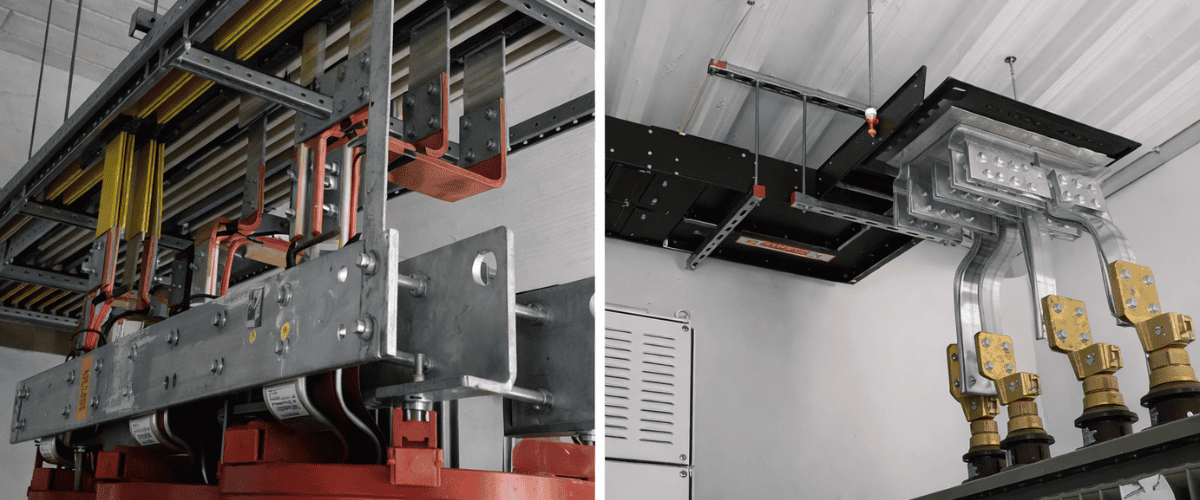

Product Gallery
Interested in this product?
Get in touch with our engineering team for customized solutions and quotations.
